Two Element Yagi Performance

Last updated: 11 February 2026

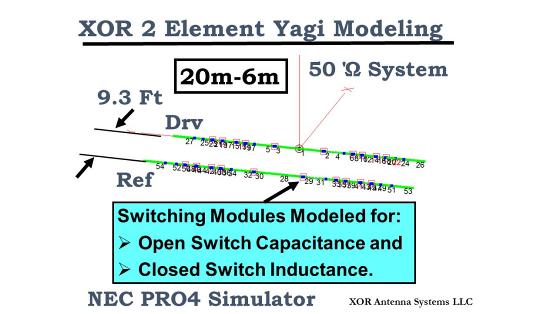

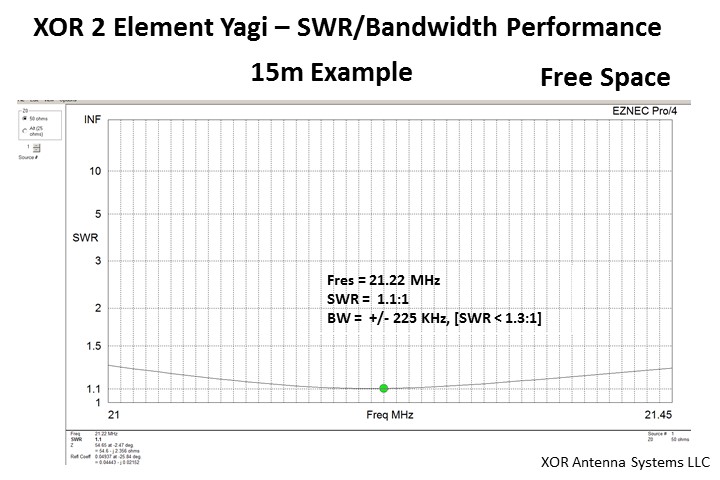

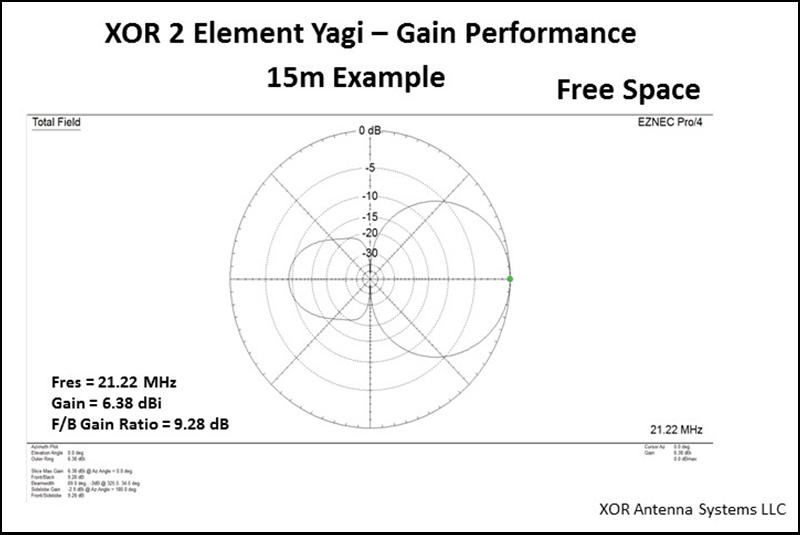

The XOR two-element Yagi antenna, also called a ham radio beam antenna, is modeled and simulated with NEC PRO 4 licensed antenna simulator. The two-element Yagi HF antenna model and example results of a simulated 15m Gain/SWR performances are shown below.
