Antenna Band Controller

Last updated: 11 February 2026

The XOR Antenna Band Controller selects six ham radio bands from 20m to 6m, for all XOR multiband antennas. Below is a list of selected bands in meters (m) and associated band frequencies (MHz).

□       6m   (50 MHz)         50.000 - 54.000 MHz

□       10m (28 MHz)         28.000 - 29.700 MHz

□       12m (24 MHz)         24.890 - 24.990 MHz

□       15m (21 MHz)           21.000 - 21.450 MHz

□       17m (18 MHz)           18.068 - 18.186 MHz

□       20m (14 MHz)         14.000 - 14.350 MHz

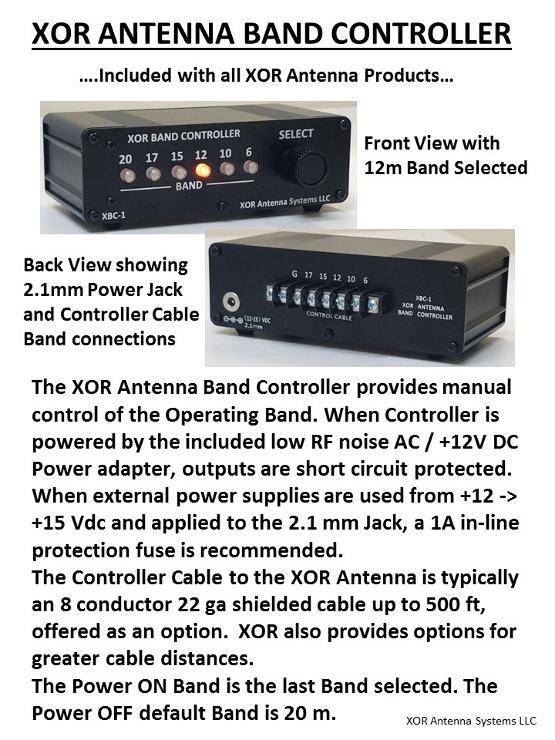

OPERATING CONTROLLER

To SELECT Operating Band, turn the Controller’s knob to corresponding frequency BAND, as noted by LED indicator.
